Answered Can "Welding" be enabled by default?

Avatar
Howard Coleman

Hey guys,

I have a question for you. I am having a touch screen based FANUC system and i am interested to set the welding option to default whenever controller is starting. Is there is any BG logic or any command for this purpose?

Waiting to hear from you.

Didn't find what you were looking for?

New post

Comments

5 comments

Sort by Date Votes
  • Avatar
    Frankie Ellis
    Comment actions Permalink

    May i have information of the controller version and software level?

    0
  • Avatar
    Toby cooke
    Comment actions Permalink

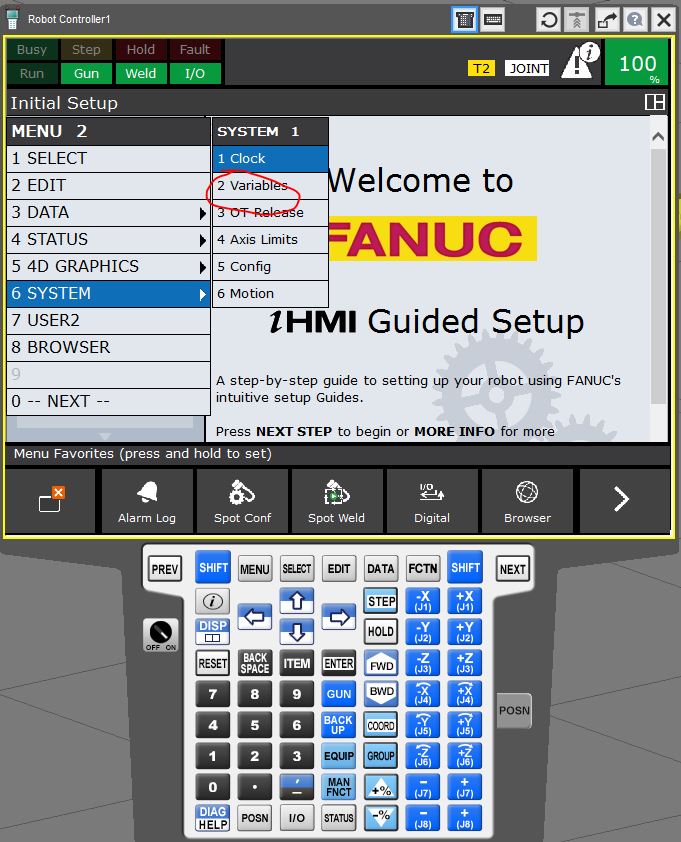

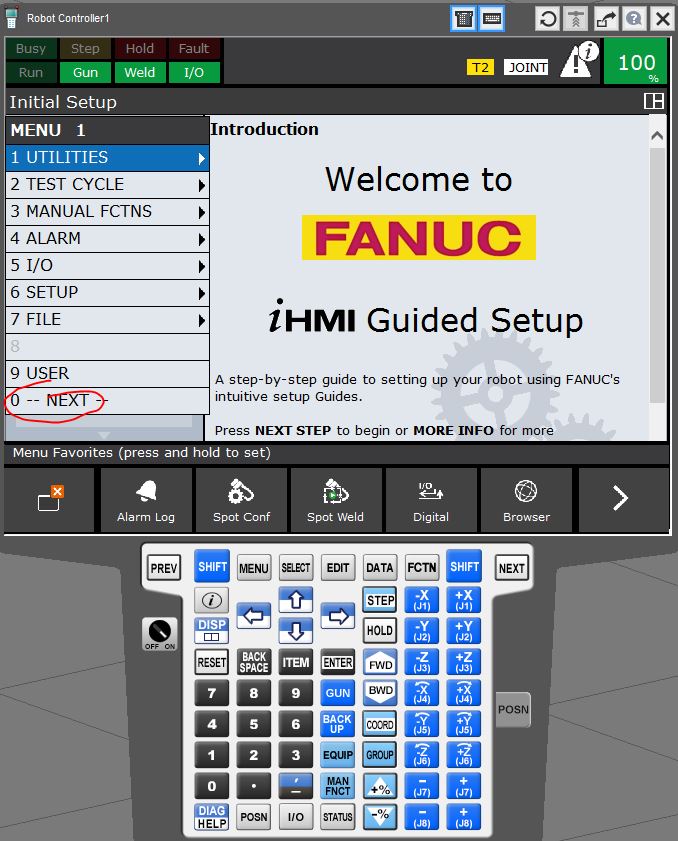

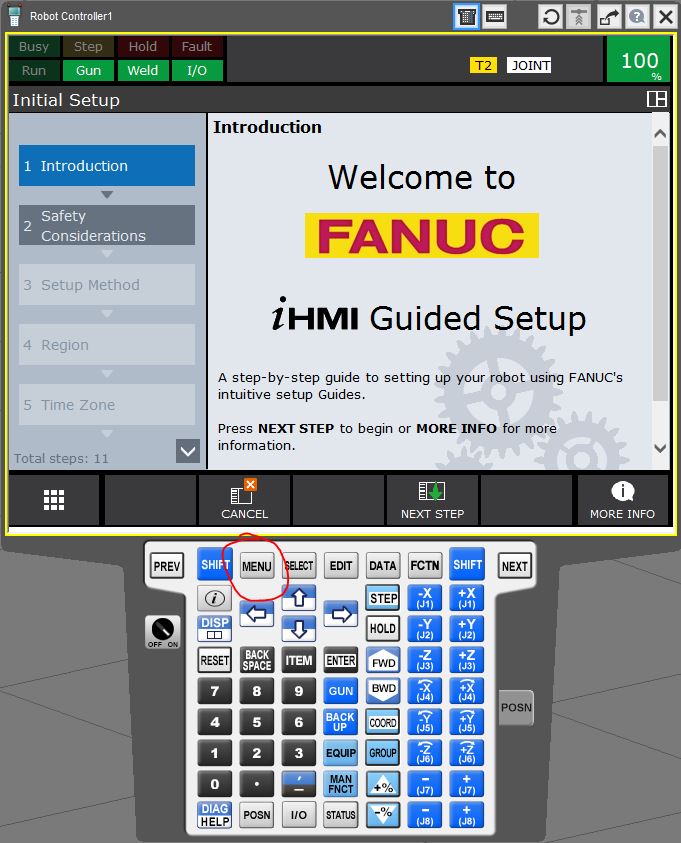

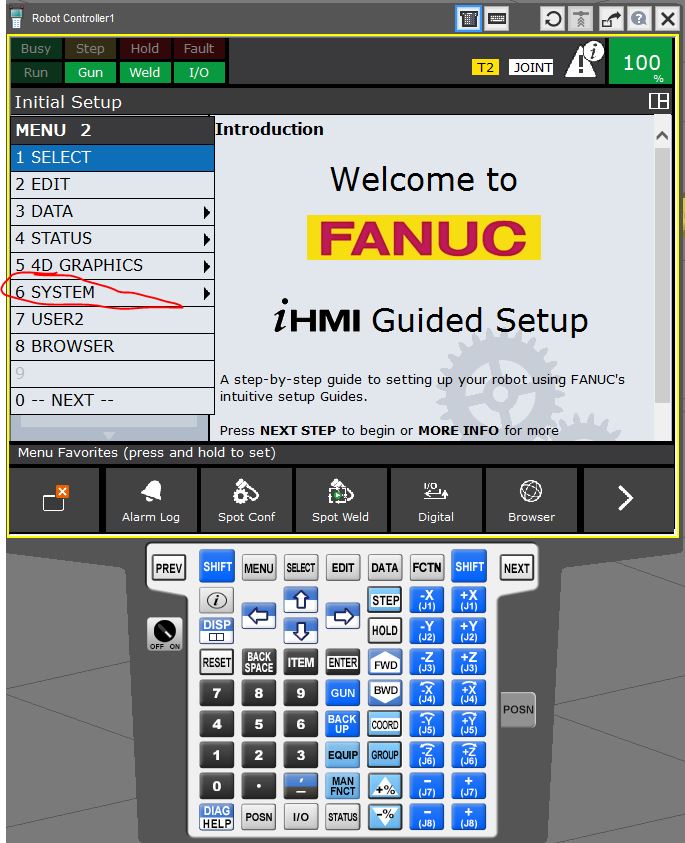

    Hello , Follow below steps. and set it to 1.



    1>





    2>





    3>





    4>





    5>





    6>





    0
  • Avatar
    Howard Coleman
    Comment actions Permalink

    Hi

    The controller is R30iB and 8.20p/10

    0
  • Avatar
    Juan Turner
    Comment actions Permalink

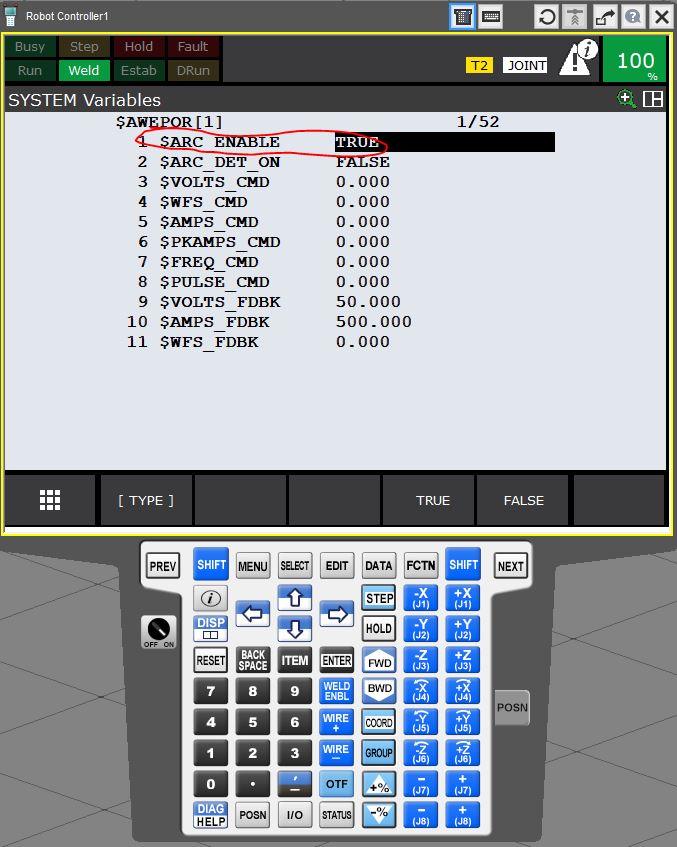

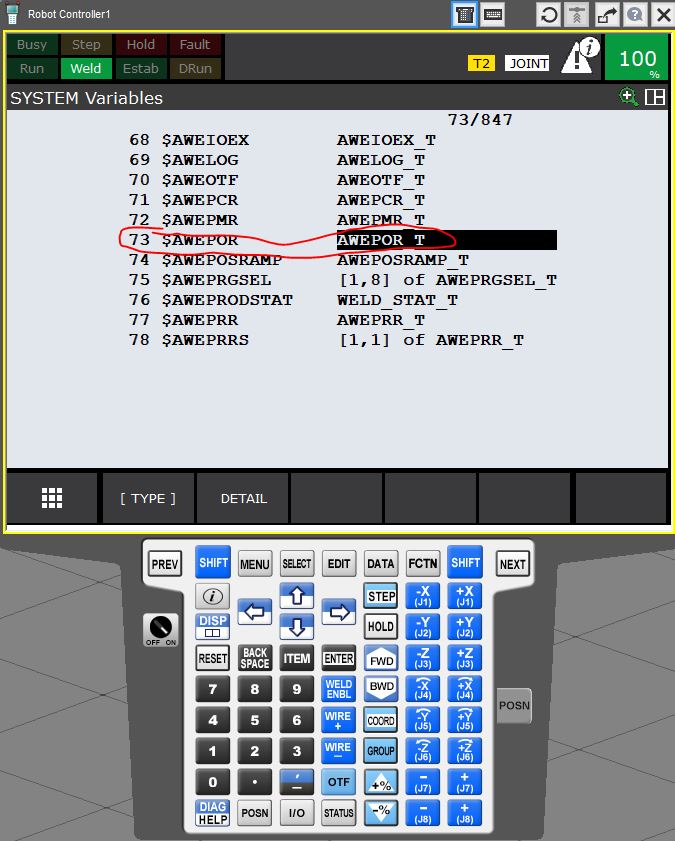

    I would tell you that on my own ARCMATE 120iB I used :  $AWEPOR[1].$ARC_ENABLE=1 on the first line of my program.

    This is the system variable that controls the welder.

    You are also able to implement this in BG logic as well and it will automate the entire process.

    1
  • Avatar
    Howard Coleman
    Comment actions Permalink

    Hi all,

    Thank you so much for inputs.

    I have already found the variable but due to some reason i was just putting "=ON" instead of "1" which caused the trouble.

    0
