Fanuc Robot Ref. Pos. for Quick Mastering Not Set

Avatar
Rodrigue

I have this error on my M10iD/12 robot. I can clear this error for a week but it keeps happening:

Ref. Pos. for Quick Mastering Not Set.

How can I solve this error?

Didn't find what you were looking for?

New post

Comments

1 comment

Sort by Date Votes
  • Avatar
    Mathieu Berube
    Comment actions Permalink

    Hi Rodrigue,

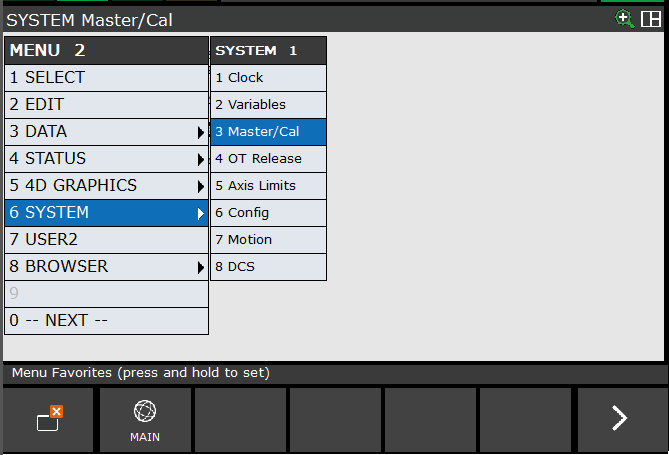

    Bring the robot at Zero position mark on all axis and do a SET QUICK MASTER REF. To perform that, go to MENU - NEXT - SYSTEM - 3 Master/Cal

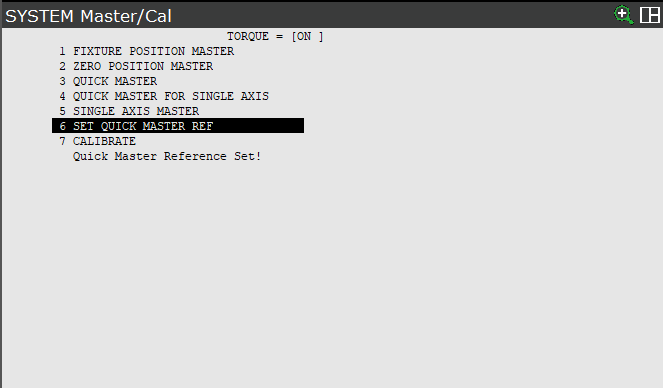

    Inside the Master/Cal menu, place the cursor on 6 SET QUICK MASTER REF and press Enter

    1
