Answered How to desing the robot hand

Avatar
Alexander S.

Hi,

Someone have information for the robot flange J6? We bought an M10iA and I want to design our hand before receiving the robot.

Thanks,

Didn't find what you were looking for?

New post

Comments

2 comments

Sort by Date Votes
  • Avatar
    Nicolas Veilleux
    Comment actions Permalink

    Hi Alexander,

    You can find the information on the page 38 of the Mechanical Unit Operator Manual on your Fanuc EDoc CD provided with the robot.

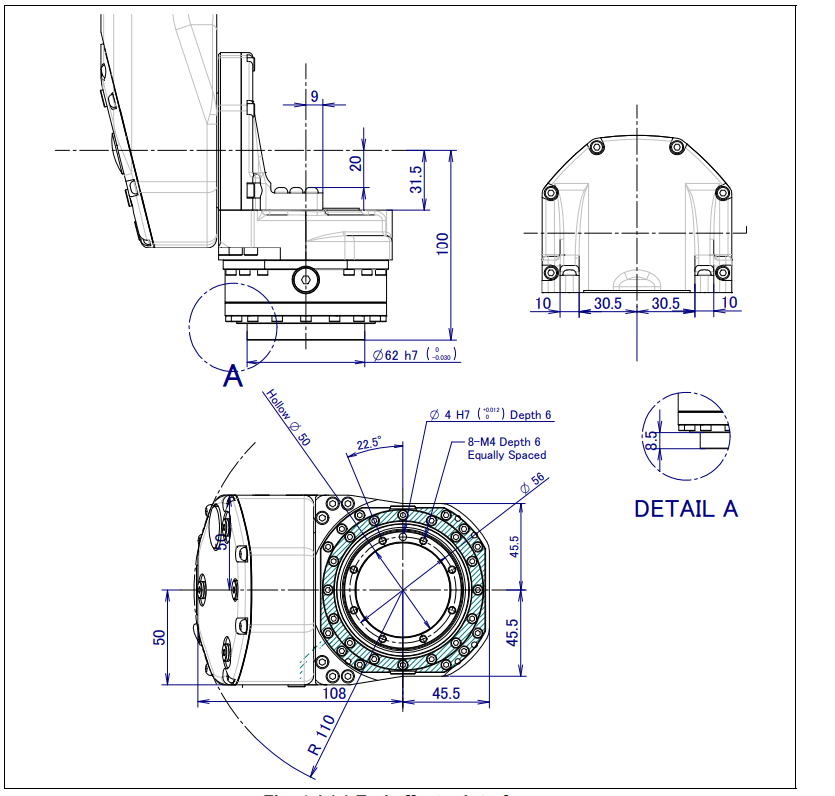

    But here is the information i found for a standard M10iA:

    1
  • Avatar
    Muhammad Ishaq
    Comment actions Permalink

    Dear Alaxander,

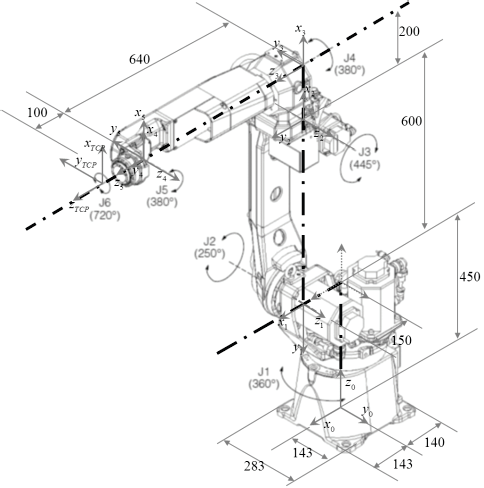

    Please find the attached image of the design of hand of M10iA. If you need the entire document then please let me know. I can provide you a good quality research paper regarding its design and control.

    Thank You

    0
