Answered Gear ratios info

Avatar
Masako Cynesige

Hi Guys!

I need Gear Ratios Information of harmonic transmissions on the axes of Fanuc Arc mate-100i. Does Fanuc provide this information? Or is it available in manuals well i have checked manuals but didn't find anything.. Please comment if anyone can help!

Thanks in advance!





Didn't find what you were looking for?

New post

Comments

4 comments

Sort by Date Votes
  • Avatar
    Chadwick Dockstader
    Comment actions Permalink

    Hello Masako ,

    Fanuc doesn't provide such information. As users are not  supposed to do anything related to mechanical things. All things are well set and programmed accordingly into teach pendant. If you want to know the gear ratio , You can calculate it manually. Calculate No. of teeth on driving gear and driven gear.

    According to formula

    Gear Ratio = No. of teeth on driven gear  /  No. of teeth on driving gear



    -1
  • Avatar
    Masako Cynesige
    Comment actions Permalink

    Dear chadwick,

    I know the formula but  thanks for letting me know that fanuc doesn't provide this information.

    Have a good day!

    0
  • Avatar
    Dimitry Vasilkov
    Comment actions Permalink

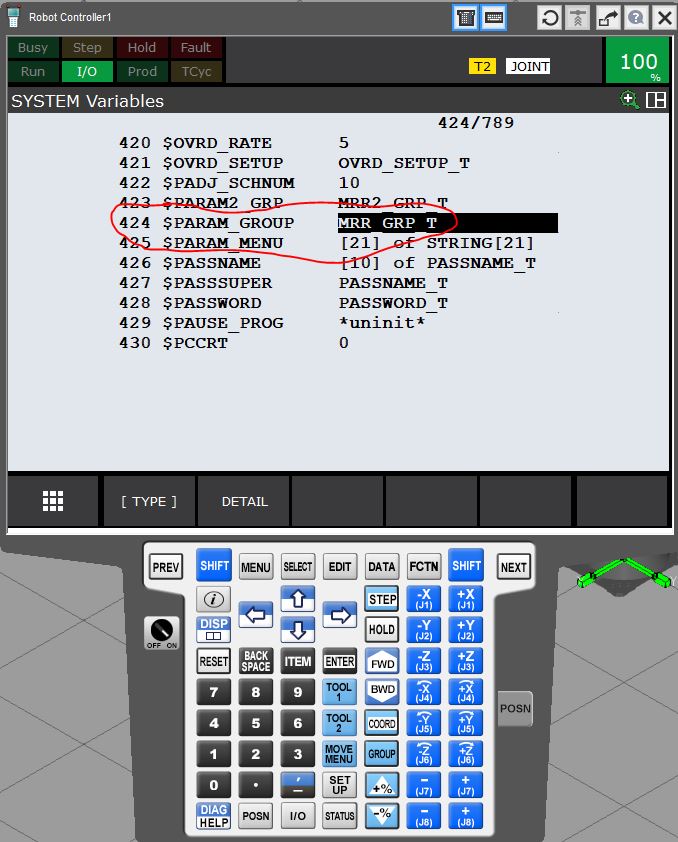

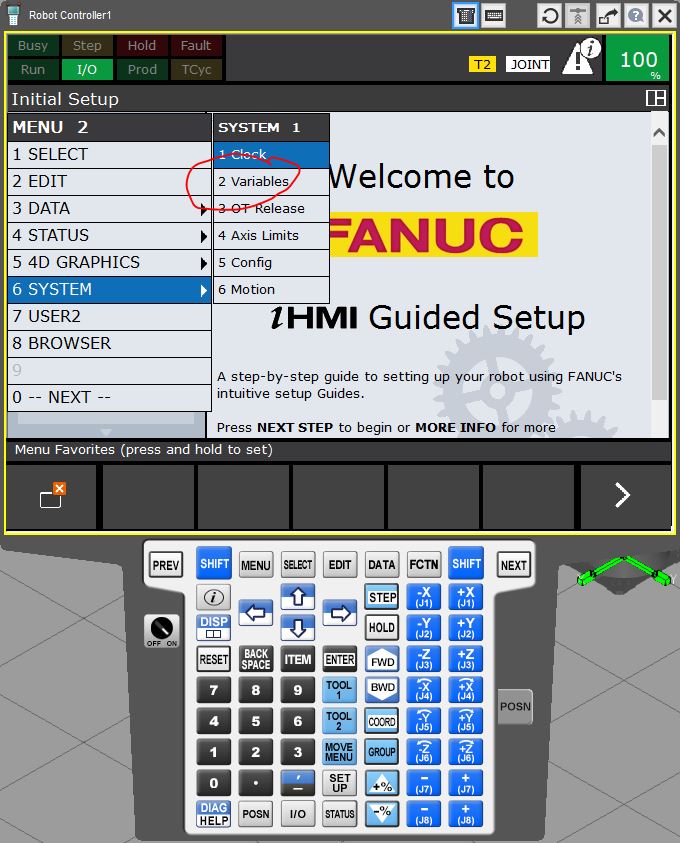

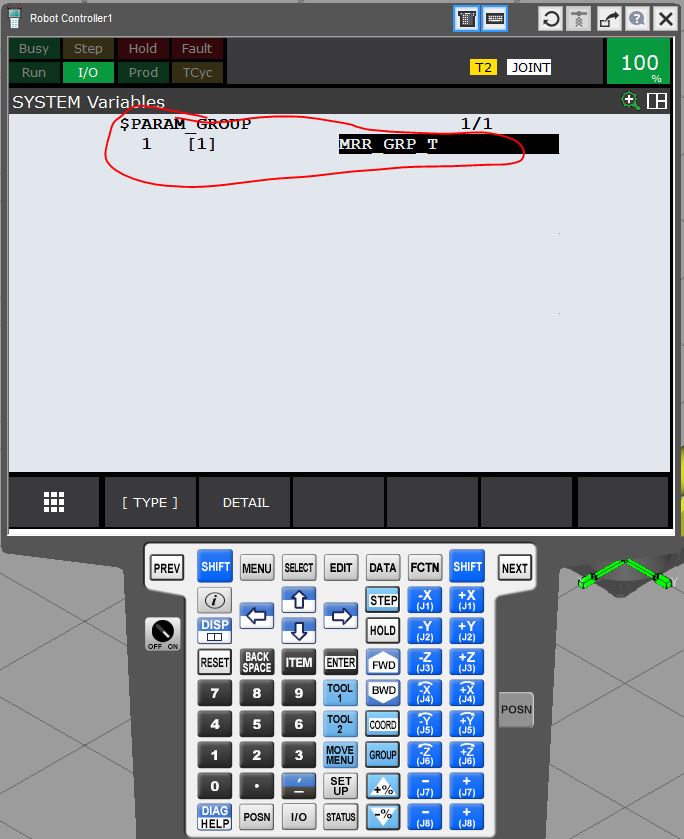

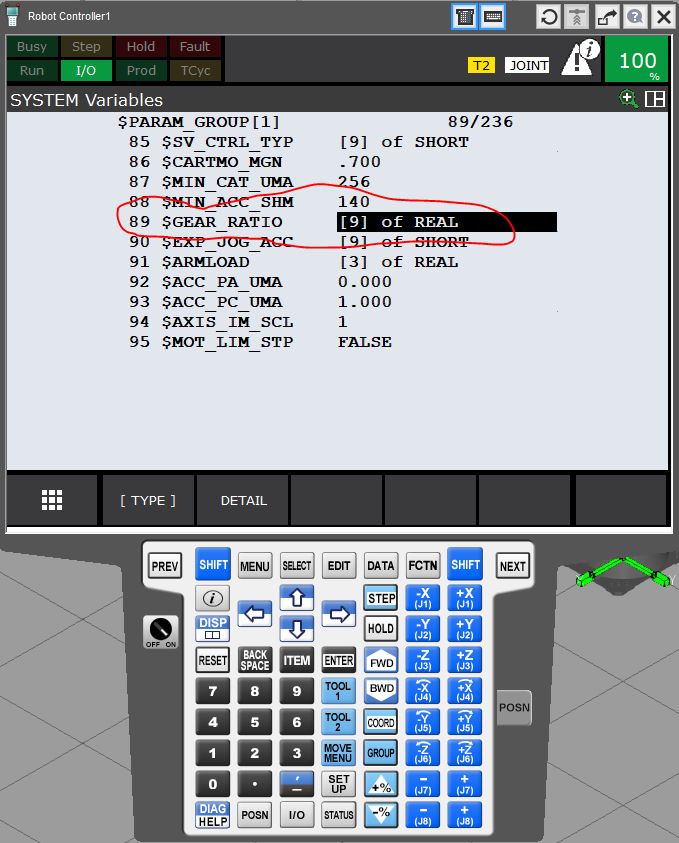

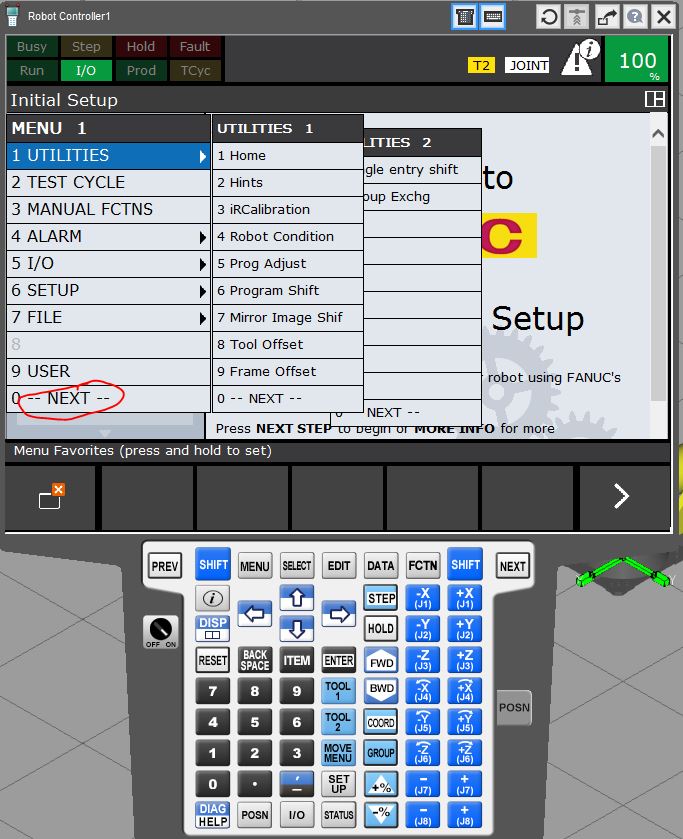

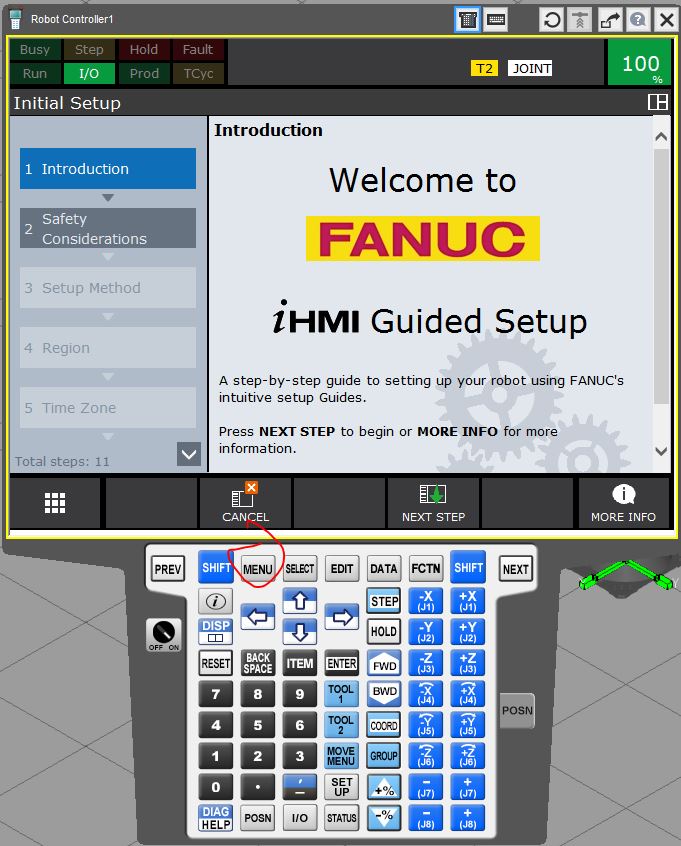

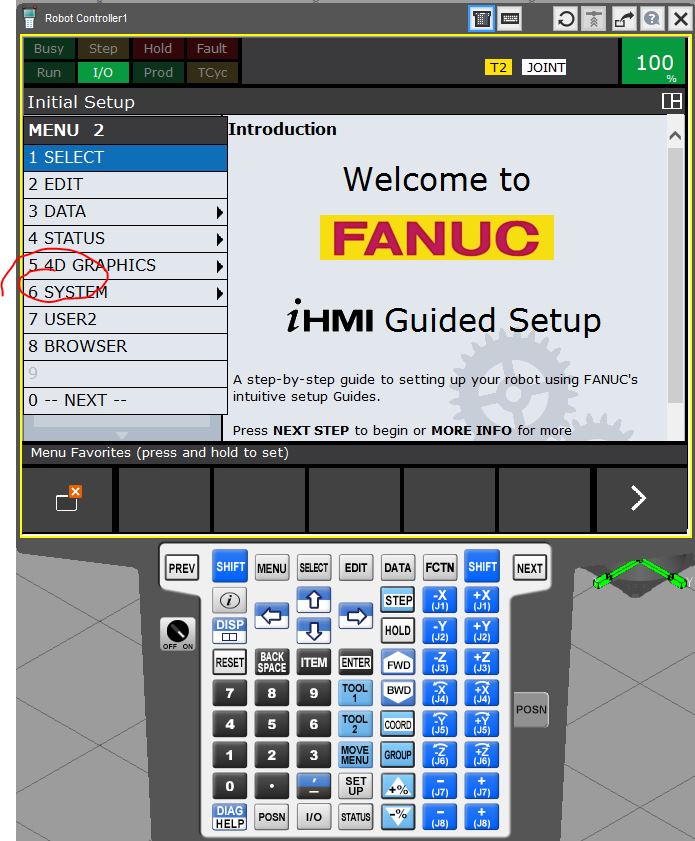

    You can follow below method to know the gear ratio



    1>





    2>





    3>





    4>





    5>





    6>





    7>





    8>



    1
  • Avatar
    Masako Cynesige
    Comment actions Permalink

    Thanks Dimitry, I appreciate the information you provided. ✌

    0
